MAX25250ATPA/VY+ - Analog Devices

Description: Four Output Mini PMIC for Camera Applications

Download MAX25250ATPA/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

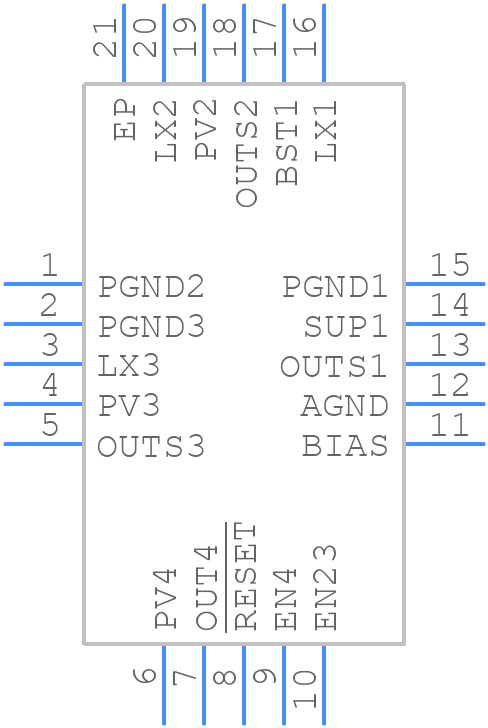

MAX25250ATPA/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25250ATPA/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T203A3Y+1C-6
click to zoom
3D Models
MAX25250ATPA/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - T203A3Y+1C-6
click to zoom

MAX25250ATPA/VY+ Details

  • Manufacturer Part Number:

    MAX25250ATPA/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP_SS-3.5X3.5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP_SS-3.5X3.5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX25250ATPA/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25250ATPA/VY+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power source and load.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Additionally, the device should be configured in a specific order, such as setting the output voltage, enabling the output, and then applying the input voltage.
  • The MAX25250ATPA/VY+ has a maximum junction temperature of 150°C. To prevent overheating, it's recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, the device should be operated within its recommended operating conditions, and the output current should be limited to prevent excessive heat generation.
  • To troubleshoot issues with the MAX25250ATPA/VY+, it's recommended to follow a systematic approach, such as checking the power supply voltage, input voltage, and output voltage, and verifying that the device is properly configured. Additionally, it's recommended to use oscilloscopes or other measurement tools to monitor the device's behavior and identify any anomalies.
  • The MAX25250ATPA/VY+ is designed to meet EMI/EMC regulatory requirements, but it's still important to follow good design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters or chokes. Additionally, it's recommended to perform EMI/EMC testing and certification to ensure compliance with regulatory requirements.
