MAX25400GTC/V+T - Analog Devices

Description: Automotive Hi-Speed USB 2.0 Protector

Download MAX25400GTC/V+T Model

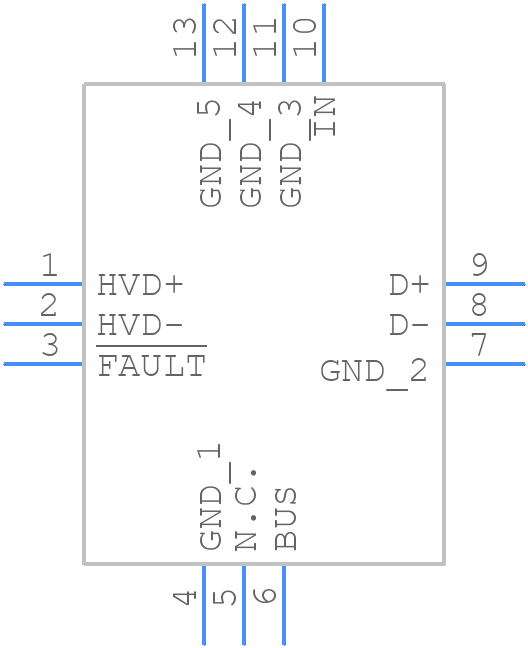

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX25400GTC/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T 1233  +5C
click to zoom
3D Models
MAX25400GTC/V+T - Analog Devices  - 3D model - Quad Flat No-Lead - T 1233  +5C
click to zoom

MAX25400GTC/V+T Details

  • Manufacturer Part Number:

    MAX25400GTC/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX25400GTC/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25400GTC/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence in the datasheet. Apply power to the VCC pin first, followed by the EN pin. Then, configure the device using the SPI interface. Make sure to follow the recommended timing and voltage levels for each pin.
  • The MAX25400GTC/V+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX25400GTC/V+T, start by reviewing the datasheet and application notes. Check the device's configuration and power-up sequence. Use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies. If the issue persists, contact Analog Devices' technical support for further assistance.
  • The MAX25400GTC/V+T is a robust device, but it's still susceptible to damage from excessive vibration or shock. If you plan to use the device in a high-vibration or high-shock environment, ensure that the PCB is properly secured and the device is properly mounted. You may also need to add additional mechanical support or damping to minimize the effects of vibration or shock.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX25400GTC/V+T Overview

Use the download button to access the MAX25400GTC/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
