MAX2769BETI/V+ - Analog Devices

Description: RF Receiver Universal GPS Receiver

Download MAX2769BETI/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

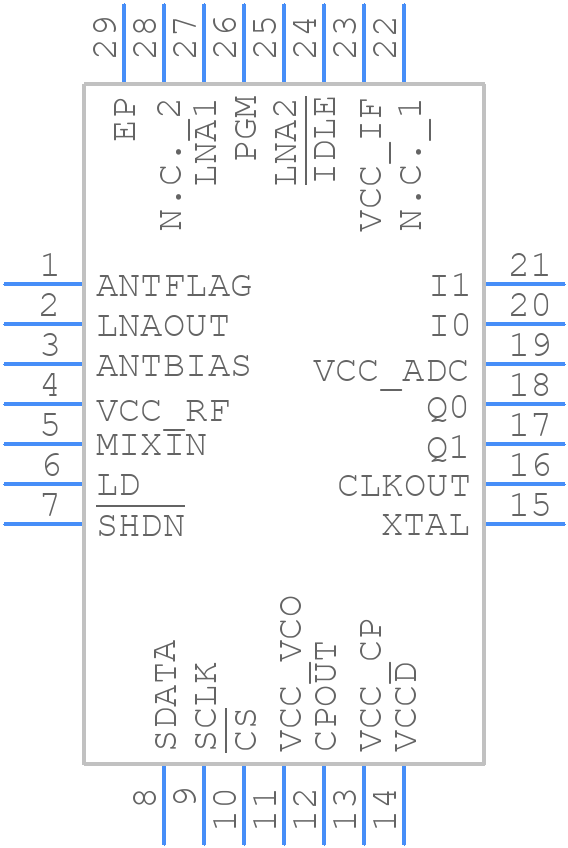

MAX2769BETI/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2769BETI/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855+3-JJ
click to zoom
3D Models
MAX2769BETI/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855+3-JJ
click to zoom

MAX2769BETI/V+ Details

  • Manufacturer Part Number:

    MAX2769BETI/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-06-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.85 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    GNSS Module

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX2769BETI/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX2769BETI/V+ to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the decoupling capacitors close to the device.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and biasing circuitry as shown in the datasheet. The device requires a single 2.7V to 5.5V power supply, and the bias voltage (VBIAS) should be set to 1.2V to 1.4V. Additionally, ensure that the input signals are within the recommended common-mode voltage range.
  • The MAX2769BETI/V+ can handle input powers up to +10dBm. However, it's recommended to limit the input power to +5dBm to ensure optimal performance and prevent damage to the device.
  • To troubleshoot issues with the MAX2769BETI/V+, start by checking the power supply and biasing circuitry to ensure they are within the recommended specifications. Then, verify that the input signals are within the recommended frequency range and amplitude. Use a spectrum analyzer to check for any unwanted signals or noise. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX2769BETI/V+ is specified to operate from -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for temperature-related specifications and ensure that the device is properly heat-sinked to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2769BETI/V+ Overview

Use the download button to access the MAX2769BETI/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX27, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
