MAX2769BETI/V+T - Analog Devices

Description: RF Receiver Universal GPS Receiver

Download MAX2769BETI/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

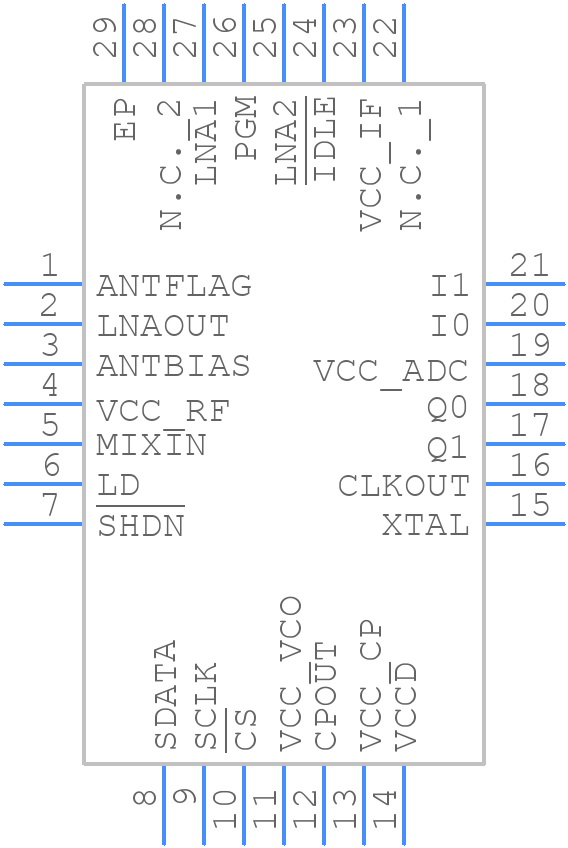

MAX2769BETI/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2769BETI/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855+3c
click to zoom
3D Models
MAX2769BETI/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T2855+3c
click to zoom

MAX2769BETI/V+T Details

  • Manufacturer Part Number:

    MAX2769BETI/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-06-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.85 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    GNSS Module

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX2769BETI/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2769BETI/V+T involves keeping the RF signal paths as short as possible, using a solid ground plane, and placing the device close to the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the power supply and digital signals.
  • To optimize the performance of the MAX2769BETI/V+T in a specific frequency band, you can adjust the values of the external components such as the inductors, capacitors, and resistors. You can also use simulation tools such as ADS or AWR to model the device and optimize the component values for the desired frequency band.
  • The maximum power handling capability of the MAX2769BETI/V+T is typically limited by the device's thermal characteristics and the PCB layout. According to the datasheet, the device can handle up to 30dBm of input power, but this may vary depending on the specific application and operating conditions.
  • To troubleshoot common issues with the MAX2769BETI/V+T, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Then, verify that the device is properly biased and that the input signals are within the recommended range. Use a spectrum analyzer to measure the noise floor and signal levels, and check for any signs of oscillation or instability.
  • Yes, the MAX2769BETI/V+T can be used in a switching application such as a TDD system. However, you'll need to ensure that the device is properly biased and that the switching frequency is within the recommended range. You may also need to add external components to filter out any unwanted harmonics or spurious signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2769BETI/V+T Overview

Use the download button to access the MAX2769BETI/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX27, or try a keyword search, such as Other Telecom ICs
