MAX2769ETI+T - Analog Devices

Description: Universal GPS Receiver

Download MAX2769ETI+T Model

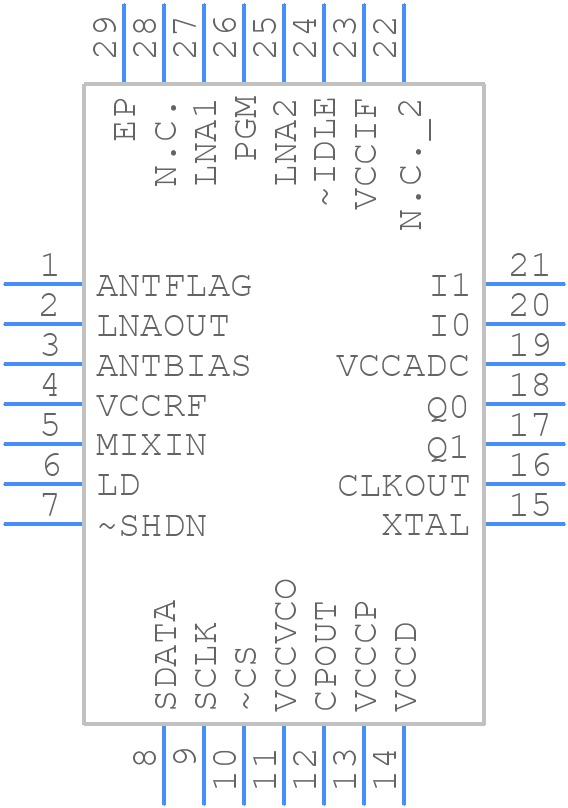

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX2769ETI+T - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-29N
click to zoom
3D Models
MAX2769ETI+T - Analog Devices  - 3D model - Other - QFN50P500X500X80-29N
click to zoom

MAX2769ETI+T Details

  • Manufacturer Part Number:

    MAX2769ETI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2007-04-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.85 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    GNSS Module

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX2769ETI+T Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF input and output traces as short as possible and away from digital signals. Use a common mode filter or a Pi-filter to reduce noise and EMI.
  • Use the device's built-in calibration feature to optimize the performance for your specific frequency band. You can also adjust the external matching components (e.g., capacitors and inductors) to fine-tune the device's performance.
  • The MAX2769ETI+T can handle up to 30dBm of input power. However, the actual power handling capability may vary depending on the specific application and operating conditions.
  • Follow proper ESD handling procedures during assembly and installation. Use ESD-protective packaging and handling materials. Ensure the device is properly grounded during operation, and use ESD-protection devices (e.g., TVS diodes) on the input and output lines.
  • The recommended operating temperature range for the MAX2769ETI+T is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance and reliability.
