MAX3042BESE+ - Analog Devices

Description: Maxim MAX3042BESE+ Quad RS-422/ RS-485, Quad Transmitter Differential 5 V, 16-Pin SOIC

Download MAX3042BESE+ Model

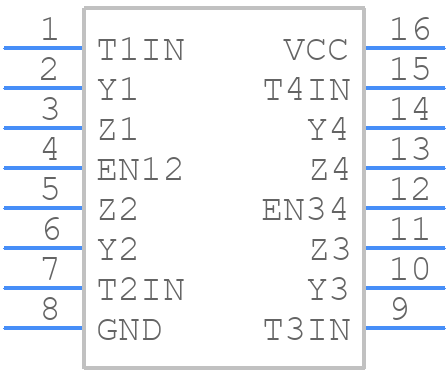

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX3042BESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 SO
click to zoom
3D Models
MAX3042BESE+ - Analog Devices  - 3D model - Small Outline Packages - 16 SO
click to zoom

MAX3042BESE+ Details

  • Manufacturer Part Number:

    MAX3042BESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.300 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3.9 mm

MAX3042BESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3042BESE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the signal source. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. The input common-mode voltage should be within the recommended range (0.3V to VCC - 0.3V). Additionally, ensure that the input signals are within the specified common-mode range and that the output load is within the recommended range (1kΩ to 10kΩ).
  • The MAX3042BESE+ can support data rates up to 100Mbps, making it suitable for high-speed applications such as USB, SATA, and PCIe. However, the actual data rate may be limited by the system's signal integrity, PCB layout, and other factors.
  • The MAX3042BESE+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device and the system.
  • Yes, the MAX3042BESE+ can be used in hot-swap applications, but it's essential to ensure that the device is properly powered down before the hot-swap event. The device can withstand voltage transients and ESD events, but it's still important to follow proper hot-swap design guidelines to prevent damage to the device or the system.
