MAX3045BESE+ - Analog Devices

Description: MAX3045BESE+, 4 (RS-422), 4 (RS-485)-TX RS-485, RS-422, Quad Transmitter, 20Mbit/s Differential 4.75 → 5.25 V

Download MAX3045BESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

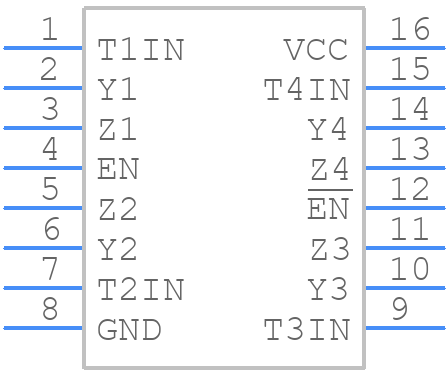

MAX3045BESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3045BESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 SO (300 mils)
click to zoom
3D Models
MAX3045BESE+ - Analog Devices - 3D model - Small Outline Packages - 16 SO (300 mils)
click to zoom

MAX3045BESE+ Details

  • Manufacturer Part Number:

    MAX3045BESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.300 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3.9 mm

MAX3045BESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3045BESE+ is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a common-mode choke or ferrite bead on the input lines to filter out high-frequency noise.
  • To ensure proper power and bypassing, connect a 0.1uF ceramic capacitor between the VCC pin and the analog ground, and a 10uF electrolytic capacitor between the VCC pin and the digital ground. Also, make sure the power supply is clean and regulated, and the voltage is within the recommended operating range of 2.7V to 5.5V.
  • The MAX3045BESE+ can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, cable length, and noise environment. It's recommended to consult the datasheet and application notes for more information on data rate and signal integrity.
  • To troubleshoot common issues, first check the power supply and bypassing, then verify the input signals and clock frequencies. Check for proper termination and signal integrity on the output lines. If the issue persists, consult the datasheet and application notes for more detailed troubleshooting guides.
  • The MAX3045BESE+ is designed to operate with 5V logic, but it can be used with other logic families with proper level shifting or voltage translation. However, the device's output voltage swing and current drive capability may need to be considered when interfacing with other logic families.
