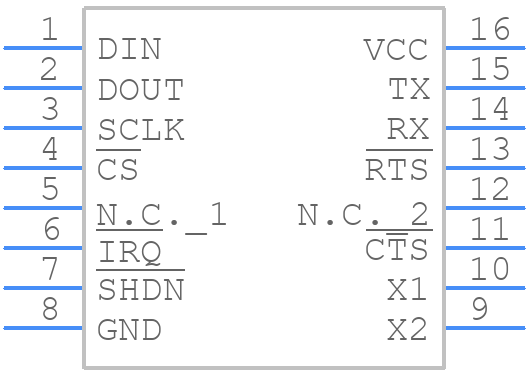

MAX3100EEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3100EEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP-
click to zoom
3D Models
MAX3100EEE+T - Analog Devices - 3D model - Small Outline Packages - 16 QSOP-
click to zoom

MAX3100EEE+T Details

  • Manufacturer Part Number:

    MAX3100EEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    SSOP, SSOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    1997-07-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    4 MHz

  • Communication Protocol:

    ASYNC, BIT

  • Data Transfer Rate-Max:

    0.028125 MBps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
