MAX3218CPP+ - Analog Devices

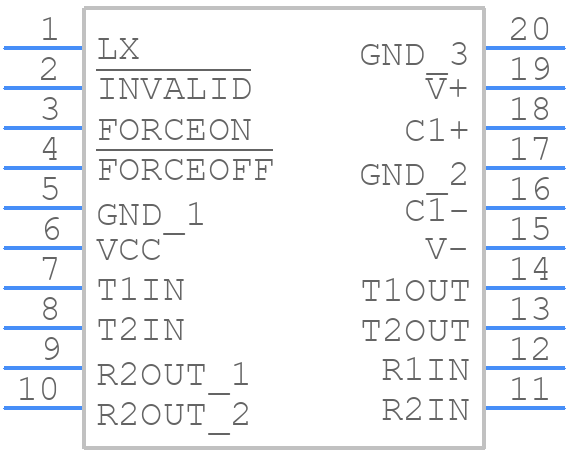

MAX3218CPP+ Details

• Manufacturer Part Number:

  MAX3218CPP+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

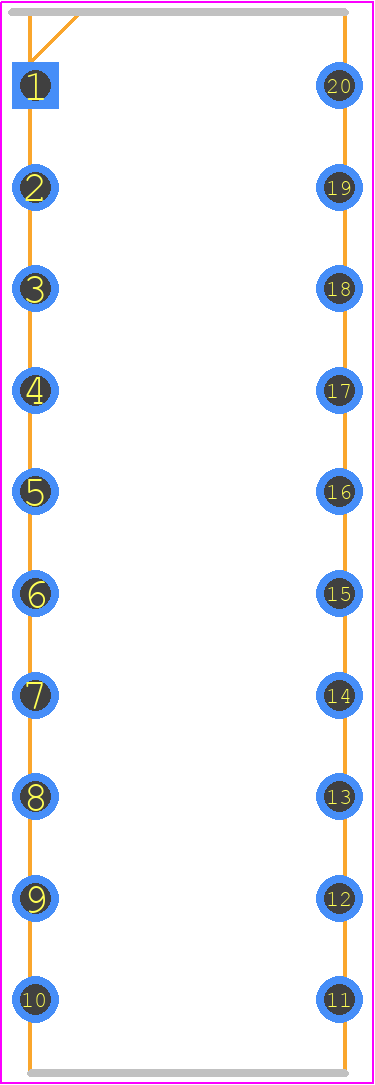

• Part Package Code:

  20-PDIP-300_MIL

• Package Description:

  DIP-20

• Pin Count:

  20

• Manufacturer Package Code:

  20-PDIP-300_MIL

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1995-03-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Differential Output:

  NO

• Driver Number of Bits:

  2

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232-E; TIA-232-E; EIA-562; TIA-562; V.28; V.24

• JESD-30 Code:

  R-PDIP-T20

• Length:

  26.16 mm

• Number of Functions:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  10 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.001 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Receive Delay-Max:

  1000 ns

• Receiver Number of Bits:

  2

• Seated Height-Max:

  4.572 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  4.25 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  2700 ns

• Width:

  7.62 mm
