MAX3224ECAP+ - Analog Devices

Description: For Space-Constrained Applications: MAX3228E/MAX3229E: ±15kV ESD-Protected, +2.5V to +5.5V, RS-232 Transceivers in UCSP™ MAX3222E/MAX3232E/MAX3241E/MAX3246E: ±15kV ESD-Protected, Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers (MAX3246E Available in UCSP) ● For Low-Voltage or Data Cable Applications: MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx RS-232 Transceivers with ±15kV ESD-Protected I/O and Logic Pins

Download MAX3224ECAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

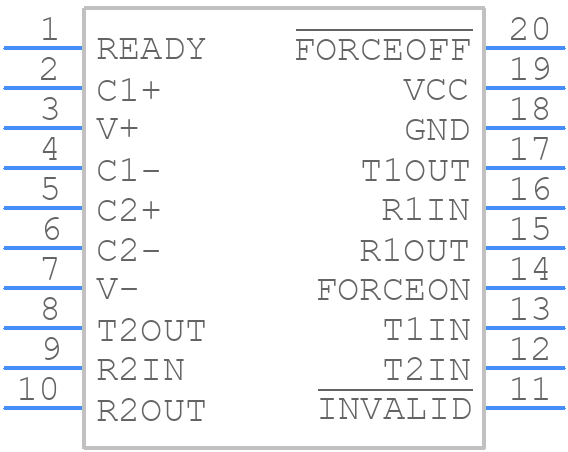

MAX3224ECAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3224ECAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 SSOP
click to zoom
3D Models
MAX3224ECAP+ - Analog Devices - 3D model - Small Outline Packages - 20 SSOP
click to zoom

MAX3224ECAP+ Details

  • Manufacturer Part Number:

    MAX3224ECAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3224ECAP+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3224ECAP+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the connector. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the MAX3224ECAP+ in a noisy environment, it's recommended to use a common-mode choke or a ferrite bead on the RS-232 lines, and to add capacitors between the power supply lines and ground to filter out noise. Additionally, using a shielded cable and connecting the shield to the ground can help reduce electromagnetic interference (EMI).
  • The maximum cable length supported by the MAX3224ECAP+ depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is around 50 feet (15 meters) at 9600bps, but it can be longer at lower baud rates. It's recommended to use a high-quality cable with a shield and to follow proper termination and routing practices to minimize signal degradation.
  • Yes, the MAX3224ECAP+ can be used with a 3.3V power supply. The device is specified to operate from a 3.0V to 5.5V power supply, and it's recommended to use a voltage regulator to ensure a stable power supply voltage. However, it's important to note that the output voltage levels may be reduced when operating at 3.3V, and the device may not be able to drive as much current.
  • The shutdown mode of the MAX3224ECAP+ is controlled by the SHDN pin. When the SHDN pin is pulled low, the device enters a low-power shutdown mode, which reduces the power consumption to less than 1μA. To handle the shutdown mode, it's recommended to use a pull-up resistor on the SHDN pin and to ensure that the pin is properly driven by a logic signal. Additionally, it's important to ensure that the device is properly powered down before entering shutdown mode to avoid any damage.
