MAX3225EEUP+T - Analog Devices

Description: RS-232 Interface IC +/-15kV ESD-Protected, 1 uA, 1Mbps, 3.0V to 5.5V, RS-232 Transceivers with AutoShutdown Plus

Download MAX3225EEUP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

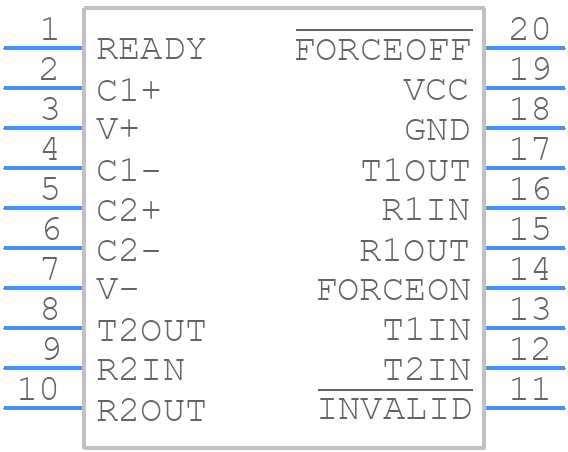

MAX3225EEUP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3225EEUP+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 TSSOP
click to zoom
3D Models
MAX3225EEUP+T - Analog Devices - 3D model - Small Outline Packages - 20 TSSOP
click to zoom

MAX3225EEUP+T Details

  • Manufacturer Part Number:

    MAX3225EEUP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP, TSSOP20,.25

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3225EEUP+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX3225EEUP+T involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the device close to the UART interface. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a separate ground plane to minimize noise and EMI.
  • To ensure reliable operation of the MAX3225EEUP+T in harsh environments, it's recommended to follow proper PCB design and layout guidelines, use a robust power supply, and implement adequate ESD protection. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
  • The maximum cable length supported by the MAX3225EEUP+T depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is approximately 100 feet (30 meters) at 9600bps and 10 feet (3 meters) at 115200bps. However, it's recommended to consult the datasheet and perform testing to determine the maximum cable length for a specific application.
  • To troubleshoot common issues with the MAX3225EEUP+T, start by checking the power supply and ensuring that it's within the recommended operating range. Next, verify that the device is properly configured and that the UART interface is functioning correctly. Use a logic analyzer or oscilloscope to monitor the serial data transmission and identify any errors or anomalies. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX3225EEUP+T can be used in a multi-point or multi-drop configuration, but it's essential to follow proper design guidelines and ensure that the device is properly terminated and biased. Consult the datasheet and application notes for more information on multi-point and multi-drop configurations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3225EEUP+T Overview

Use the download button to access the MAX3225EEUP+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Line Driver or Receivers
