Texas Instruments provides a recommended layout and routing guide in the application note SLVAE03, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure reliable operation.
The MAX3227EIDBG4 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
The maximum cable length supported by the MAX3227EIDBG4 depends on the baud rate, cable quality, and noise environment. As a general guideline, cable lengths up to 100 meters are possible at lower baud rates (e.g., 9600 bps), while shorter cable lengths (e.g., 10 meters) are recommended for higher baud rates (e.g., 115200 bps).
Yes, the MAX3227EIDBG4 can be used in a multi-point or multi-drop configuration, but it's essential to ensure that the total bus capacitance does not exceed the recommended maximum value of 250 pF. Additionally, consider using repeaters or hubs to extend the distance and improve signal integrity.
To troubleshoot common issues with the MAX3227EIDBG4, start by checking the power supply, clock, and reset signals. Verify that the device is properly configured and that the baud rate, data bits, and stop bits match between the transmitter and receiver. Use a logic analyzer or oscilloscope to inspect the signal quality and identify any errors or anomalies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX3227EIDBG4 Overview

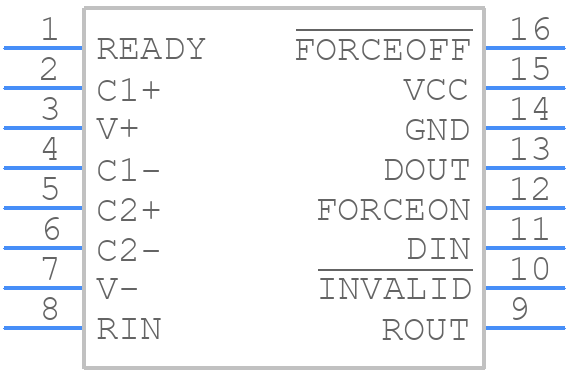

Use the download button to access the MAX3227EIDBG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32,
or try a keyword search, such as Line Driver or Receivers
