MAX3241EEAI+ - Analog Devices

Description: MAX3241EEAI+, Line Transceiver, EIA/TIA-232, RS-232, V.24, V.28 2 2 2 250kbit/s, 3 → 5.5 V, 28-Pin SSOP

Download MAX3241EEAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

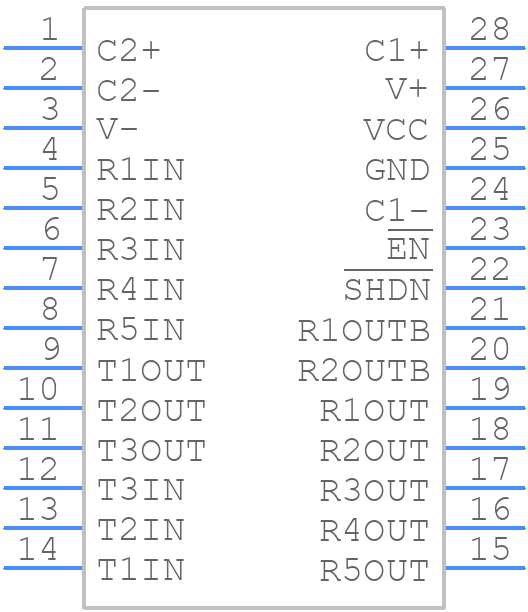

MAX3241EEAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3241EEAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 28 SSOP
click to zoom
3D Models
MAX3241EEAI+ - Analog Devices - 3D model - Small Outline Packages - MAX 28 SSOP
click to zoom

MAX3241EEAI+ Details

  • Manufacturer Part Number:

    MAX3241EEAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-03-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    3

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Functions:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    0.3 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.29 mm

MAX3241EEAI+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX3241EEAI+ involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the device close to the RS-232 connector. Additionally, it's recommended to use a 0.1uF bypass capacitor between VCC and GND, and to keep the signal traces as short as possible.
  • The MAX3241EEAI+ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging. Additionally, it's recommended to use a TVS diode or other ESD protection device on the RS-232 lines to protect against external ESD events.
  • The maximum cable length supported by the MAX3241EEAI+ depends on the baud rate and the quality of the cable. As a general rule, the maximum cable length is around 50 feet at 9600bps, 20 feet at 19200bps, and 10 feet at 38400bps. However, it's recommended to use a high-quality cable with proper shielding and termination to ensure reliable data transmission.
  • Yes, the MAX3241EEAI+ can be used in a multi-point RS-232 application, but it's recommended to use a repeater or a hub to ensure reliable data transmission. The MAX3241EEAI+ can drive up to 10 loads, but the total capacitance of the loads should not exceed 2500pF.
  • Common issues with the MAX3241EEAI+ include data transmission errors, device not responding, and power supply issues. To troubleshoot these issues, check the power supply voltage, ensure proper termination and shielding of the RS-232 cable, and verify that the device is properly configured and initialized. Additionally, use a logic analyzer or oscilloscope to debug the serial data transmission.
