MAX3311CUB+ - Analog Devices

Description: Single Transmitter/Receiver RS-232

Download MAX3311CUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

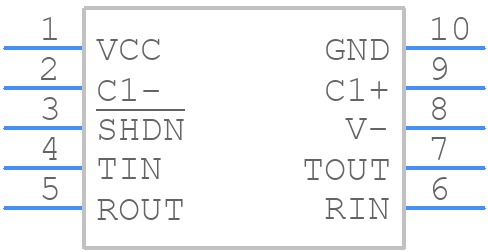

MAX3311CUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3311CUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX-1
click to zoom
3D Models
MAX3311CUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX-1
click to zoom

MAX3311CUB+ Details

  • Manufacturer Part Number:

    MAX3311CUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-02-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    7.4 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX3311CUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3311CUB+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • Proper termination of the MAX3311CUB+ involves using a 50Ω termination resistor at the output, and a 50Ω back-termination resistor at the input. The termination resistors should be placed close to the device and connected to a solid ground plane.
  • The maximum cable length that can be driven by the MAX3311CUB+ depends on the cable type, frequency, and signal amplitude. As a general rule, the MAX3311CUB+ can drive up to 100m of Category 5e cable at 100Mbps. However, it's recommended to consult the application note AN-1149 for more detailed information and to perform simulations to determine the maximum cable length for a specific application.
  • The MAX3311CUB+ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
  • The power-up sequence for the MAX3311CUB+ involves applying the power supply voltage (VCC) before the input signal. The device is enabled when VCC reaches 2.7V, and the input signal should be applied after the device is fully powered up. Refer to the datasheet for more details on the power-up sequence.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3311CUB+ Overview

Use the download button to access the MAX3311CUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
