MAX3311CUB+T - Analog Devices

Description: RS-232 Interface IC 460kbps, 1 uA Supply Current, RS-232-Compatible Transceivers in uMAX

Download MAX3311CUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

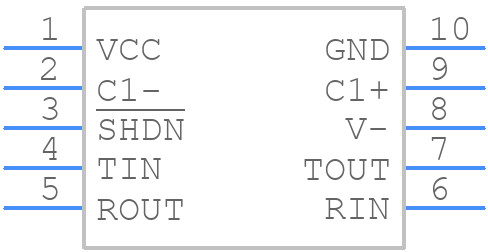

MAX3311CUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3311CUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX
click to zoom
3D Models
MAX3311CUB+T - Analog Devices - 3D model - Small Outline Packages - 10 µMAX
click to zoom

MAX3311CUB+T Details

  • Manufacturer Part Number:

    MAX3311CUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-02-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    7.4 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX3311CUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output traces separate, use a solid ground plane, and place the device close to the signal source. Additionally, use a low-ESR capacitor for the VCC bypass and keep the power traces away from the signal traces.
  • Proper termination is critical for high-speed signals. Use a 50Ω termination resistor at the receiver end, and ensure the transmission line is properly matched to the characteristic impedance of the PCB material.
  • The maximum cable length supported by the MAX3311CUB+T depends on the signal frequency, cable type, and termination. As a general rule, the maximum cable length is around 10-15 meters for a 100Mbps signal, but it's recommended to consult the datasheet and perform signal integrity simulations for specific applications.
  • Yes, the MAX3311CUB+T is designed to support hot-swap applications. It has built-in overcurrent protection and can withstand voltage transients during hot-swap events. However, it's essential to follow proper hot-swap design guidelines and ensure the device is properly bypassed and terminated.
  • To troubleshoot signal integrity issues, use an oscilloscope to measure the signal waveform and eye diagram. Check for signal reflections, ringing, and jitter. Ensure proper termination, and verify the signal frequency and amplitude are within the device's specifications. Consult the datasheet and application notes for more information.
