MAX3311EUB+ - Analog Devices

Description: MAX3311EUB+, Line Transceiver, EIA/TIA-232, RS-232 1 1 1 460kbit/s, 5 V, 10-Pin µMAX

Download MAX3311EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

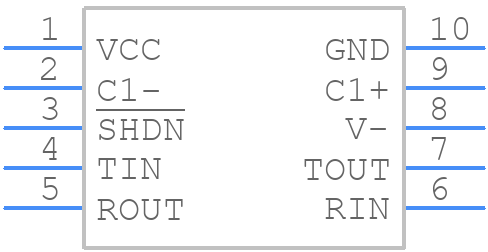

MAX3311EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3311EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX-1
click to zoom
3D Models
MAX3311EUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX-1
click to zoom

MAX3311EUB+ Details

  • Manufacturer Part Number:

    MAX3311EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-02-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    7.4 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX3311EUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX3311EUB+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX3311EUB+ is properly biased for optimal performance, make sure to provide a stable and noise-free power supply, and follow the recommended biasing scheme outlined in the datasheet. Additionally, ensure that the input signals are within the recommended common-mode voltage range and that the output is properly terminated.
  • The key considerations for thermal management when using the MAX3311EUB+ include providing adequate heat sinking, ensuring good airflow around the device, and avoiding high ambient temperatures. The device has a maximum junction temperature of 150°C, so it's essential to keep the junction temperature below this threshold to ensure reliable operation.
  • To troubleshoot common issues with the MAX3311EUB+, such as oscillations or instability, start by checking the power supply and ensuring it's stable and noise-free. Next, verify that the input signals are within the recommended common-mode voltage range and that the output is properly terminated. If the issue persists, check for layout and placement issues, and ensure that the device is properly biased and configured according to the datasheet.
  • When using the MAX3311EUB+ in a high-reliability or safety-critical application, it's essential to follow the recommended design and layout guidelines, and to ensure that the device is properly biased and configured according to the datasheet. Additionally, consider implementing redundant or fail-safe design techniques, and ensure that the device is properly tested and validated for the specific application.
