MAX3314ECSA+ - Analog Devices

Description: RS-232 Interface IC +/-15kV ESD-Protected, 460kbps, 1 uA, RS-232-Compatible Transceiver

Download MAX3314ECSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

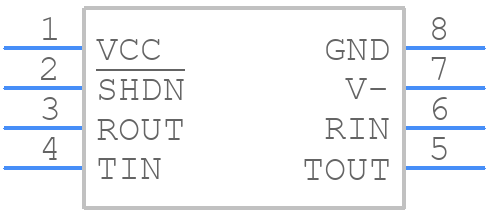

MAX3314ECSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3314ECSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
MAX3314ECSA+ - Analog Devices - 3D model - Small Outline Packages - -8 so
click to zoom

MAX3314ECSA+ Details

  • Manufacturer Part Number:

    MAX3314ECSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, MS-012A, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3314ECSA+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3314ECSA+ is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a common-mode filter or a ferrite bead to filter out high-frequency noise on the VCC and GND pins.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence in the datasheet. Apply VCC first, followed by VLOGIC, and then the input signals. Also, ensure that the input signals are within the specified voltage range and that the device is properly bypassed with capacitors.
  • The MAX3314ECSA+ can support data rates up to 100Mbps, but the actual data rate may be limited by the system's signal integrity, PCB layout, and noise environment. It's recommended to perform signal integrity analysis and simulation to ensure reliable data transmission.
  • Yes, the MAX3314ECSA+ can be used in hot-swap applications, but it's essential to follow proper hot-swap design guidelines to prevent damage to the device. Ensure that the device is properly powered down before hot-swapping, and use a hot-swap controller or a power-switching device to control the power supply.
  • To troubleshoot issues with the MAX3314ECSA+, start by checking the power supply and input signals to ensure they are within the specified range. Use an oscilloscope to verify the signal integrity and check for noise or distortion. Also, review the PCB layout and ensure that it follows good design practices. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3314ECSA+ Overview

Use the download button to access the MAX3314ECSA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Line Driver or Receivers
