Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MAX3658AETA+ - Analog Devices

Description: Transimpedance Amplifiers 622Mbps, Low-Noise, High-Gain Transimpedance Preamplifier

Download MAX3658AETA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

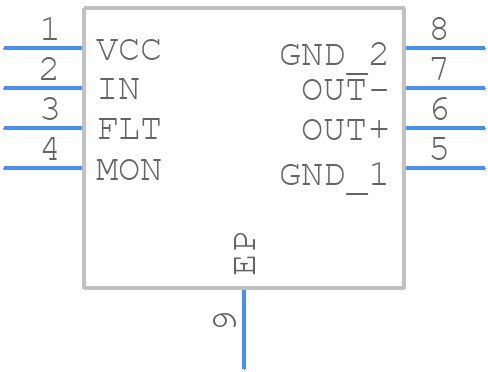

MAX3658AETA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3658AETA+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2 (8 TDFN)
click to zoom
3D Models
MAX3658AETA+ - Analog Devices - 3D model - Small Outline No-lead - T833+2 (8 TDFN)
click to zoom

MAX3658AETA+ Details

  • Manufacturer Part Number:

    MAX3658AETA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, LEAD FREE, MO-229WEEC, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2003-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.026 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX3658AETA+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX3658AETA+. Ensure that the input and output traces are separated, and the power supply decoupling capacitors are placed close to the device. Use a solid ground plane and avoid vias under the device. Refer to the application note AN-1149 for more detailed guidelines.
  • The input capacitor value depends on the input voltage, frequency, and desired ripple rejection. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the maximum input voltage. Consult the datasheet and application notes for more specific guidance.
  • The MAX3658AETA+ can deliver up to 1.5A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. Ensure that the device is properly heatsinked and the output current is within the recommended operating range.
  • The MAX3658AETA+ has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and the GND pin. The device will limit the output current to the programmed value (typically 1.5A) when the voltage across Rs exceeds 50mV. Consult the datasheet for more details on the overcurrent protection circuit.
  • The MAX3658AETA+ can operate with input voltages between 4.5V and 18V. However, the recommended input voltage range is between 5V and 15V for optimal performance and efficiency.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3658AETA+ Overview

Use the download button to access the MAX3658AETA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX36, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Suggested Parts

If you searched for MAX3658AETA+, you might also be interested in these parts:
Part Number
MAX3645EEE+T
LMH6517SQ/NOPB
LTC6420CUDC-20#PBF
TC1-1-13M+
LMH6517SQE/NOPB
BH1726NUC
LMR14050SQDPRTQ1
LT3650EDD-8.4#PBF
SN74193N

Parts related to MAX3658AETA+

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
