MAX4061ETA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4061ETA+T - AUDIO AMPLIFIER, SINGLE, 5.5V, TDFN-8

Download MAX4061ETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

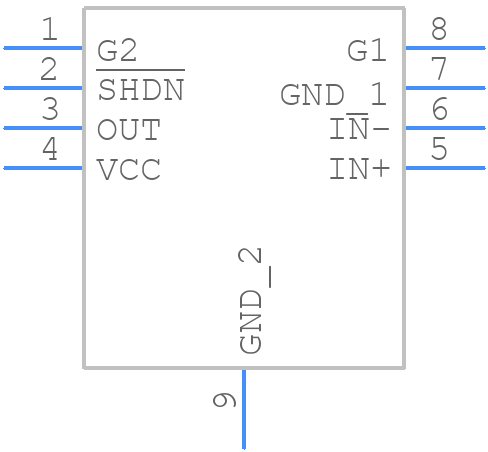

MAX4061ETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4061ETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX4061ETA+T-1
click to zoom
3D Models
MAX4061ETA+T - Analog Devices - 3D model - Small Outline No-lead - MAX4061ETA+T-1
click to zoom

MAX4061ETA+T Details

  • Manufacturer Part Number:

    MAX4061ETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, TQFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2002-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4061ETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4061ETA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the device away from high-current or high-voltage traces.
  • To ensure stability, make sure to follow the recommended output filter configuration, use a low-ESR capacitor, and keep the output impedance low. Additionally, avoid using long output traces and ensure that the device is properly decoupled from the power supply. If oscillation occurs, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The MAX4061ETA+T can drive a maximum capacitive load of 10nF. Exceeding this limit may cause instability or oscillation. If a larger capacitive load is required, consider using an additional buffer stage or a device with higher drive capability.
  • To protect the MAX4061ETA+T from overvoltage or ESD damage, use a voltage clamp or a TVS diode at the input, and ensure that the device is properly grounded. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • The recommended power-up sequence for the MAX4061ETA+T is to apply the power supply voltage (VCC) before applying the input signal. This ensures that the device is properly biased and configured before the input signal is applied.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4061ETA+T Overview

Use the download button to access the MAX4061ETA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX40, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
