MAX4070AUA+T - Analog Devices

Description: Current Sense Amplifiers Bidirectional, High-Side, Current-Sense Amplifiers with Reference

Download MAX4070AUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

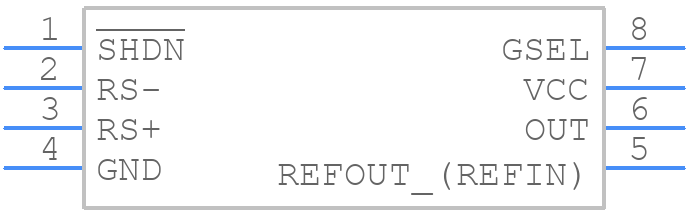

Symbol
MAX4070AUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4070AUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036 8Pin uMax_2
click to zoom
3D Models
MAX4070AUA+T - Analog Devices - 3D model - Small Outline Packages - 21-0036 8Pin uMax_2
click to zoom

MAX4070AUA+T Details

  • Manufacturer Part Number:

    MAX4070AUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MO-187CAA, MICRO, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    3.6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4070AUA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4070AUA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to minimize noise and interference.
  • To ensure accurate voltage measurement, it's essential to use a high-impedance input source, such as a voltage divider or an attenuator, to prevent loading the input signal. Additionally, the input voltage should be within the specified range, and the device should be operated within its recommended temperature range.
  • The maximum allowable input voltage for the MAX4070AUA+T is 36V, which is the absolute maximum rating. However, the recommended input voltage range is 4.5V to 30V to ensure accurate and reliable operation.
  • The MAX4070AUA+T is rated for operation up to 125°C, but its accuracy and reliability may be affected at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or thermal management techniques to maintain a safe operating temperature.
  • Common issues with the MAX4070AUA+T can be troubleshooted by checking the input signal integrity, ensuring proper power supply decoupling, and verifying the device's operating conditions. Additionally, checking for layout-related issues, such as noise coupling or ground loops, can help resolve oscillation problems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4070AUA+T Overview

Use the download button to access the MAX4070AUA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX40, or try a keyword search, such as Power Management Circuits
