MAX4071AUA+ - Analog Devices

Description: Current Sense Amplifiers Bidirectional High Side Crnt-Sense Amp

Download MAX4071AUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

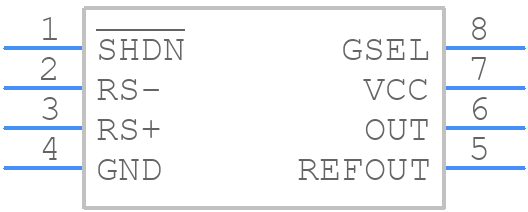

Symbol
MAX4071AUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4071AUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036
click to zoom
3D Models
MAX4071AUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036
click to zoom

MAX4071AUA+ Details

  • Manufacturer Part Number:

    MAX4071AUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4071AUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4071AUA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to minimize noise and interference.
  • To ensure accuracy, it's essential to use a high-precision voltage reference, such as the MAX6126, and to follow proper PCB layout and routing guidelines. Additionally, calibrating the device during production and using a high-quality analog-to-digital converter (ADC) can also improve accuracy.
  • The MAX4071AUA+ has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The MAX4071AUA+ has a maximum input voltage rating of 76V, making it suitable for use in high-voltage applications such as industrial power supplies and automotive systems. However, it's essential to follow proper safety precautions and design guidelines to ensure safe operation.
  • Common issues with the MAX4071AUA+ can often be resolved by checking the PCB layout and routing, ensuring proper power supply decoupling, and verifying the accuracy of the voltage reference. Additionally, using a scope or logic analyzer to debug the device can help identify and resolve issues quickly.
