MAX41461GUB+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX41461GUB+ - IF Transmitter, 286MHz to 960MHz, ASK, FSK, OOK, 200Kbps, 17dBm Out, 1.8V to 3.6V, TSSOP-10

Download MAX41461GUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

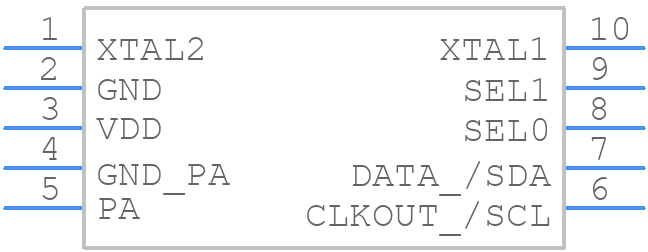

MAX41461GUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX41461GUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX41461GUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX41461GUB+ Details

  • Manufacturer Part Number:

    MAX41461GUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-01-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
