MAX4210EEUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4210EEUA+ - POWER AND CURRENT MONITOR, UMAX-8

Download MAX4210EEUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

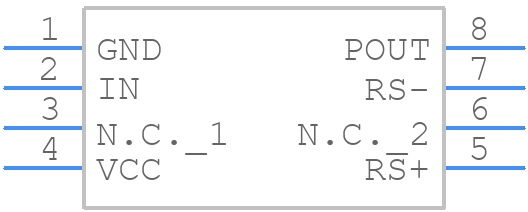

Symbol
MAX4210EEUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4210EEUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036 8Pin uMax_1
click to zoom
3D Models
MAX4210EEUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036 8Pin uMax_1
click to zoom

MAX4210EEUA+ Details

  • Manufacturer Part Number:

    MAX4210EEUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MO-187CAA, MICRO MAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-06-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.67 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4210EEUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4210EEUA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input traces as short as possible.
  • To ensure accuracy over the entire operating temperature range, it's essential to follow proper PCB design and layout guidelines, use a stable voltage supply, and minimize thermal gradients on the board. Additionally, calibration and trimming of the device may be necessary to achieve optimal performance.
  • The maximum allowable input voltage for the MAX4210EEUA+ is ±20V. Exceeding this voltage can cause damage to the device or affect its performance. It's essential to ensure that the input voltage stays within the recommended range to maintain accuracy and prevent damage.
  • The MAX4210EEUA+ can handle common-mode voltages up to ±200mV. However, excessive common-mode voltages can affect the device's accuracy and linearity. It's essential to ensure that the common-mode voltage stays within the recommended range to maintain optimal performance.
  • The recommended power-up sequence for the MAX4210EEUA+ is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This sequence helps prevent latch-up and ensures proper device operation. Failure to follow this sequence can cause device malfunction or damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4210EEUA+ Overview

Use the download button to access the MAX4210EEUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
