MAX42500ATEDA+ - Analog Devices

Description: Four- to Seven-Input Industrial Power System Monitor Family

Download MAX42500ATEDA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

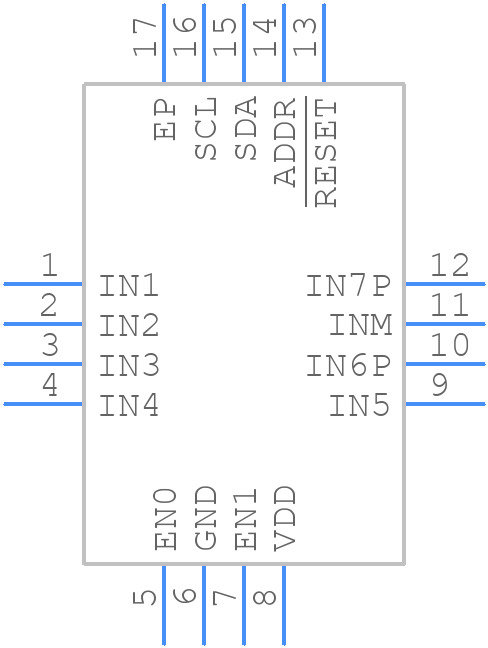

MAX42500ATEDA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX42500ATEDA+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+ 5C
click to zoom
3D Models
MAX42500ATEDA+ - Analog Devices - 3D model - Quad Flat No-Lead - T1633+ 5C
click to zoom

MAX42500ATEDA+ Details

  • Manufacturer Part Number:

    MAX42500ATEDA+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX42500ATEDA+ Overview

Use the download button to access the MAX42500ATEDA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX42, or try a keyword search, such as Power Management Circuits
