MAX4468EKA+T - Analog Devices

Description: Low-Cost, Micropower, SC70/SOT23-8, Microphone Preamplifiers with Complete Shutdown

Download MAX4468EKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

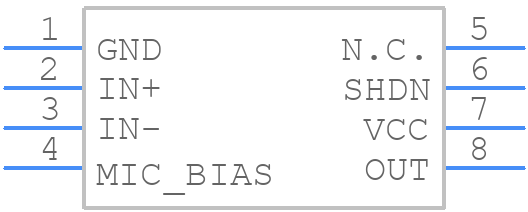

Symbol
MAX4468EKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4468EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX4468EKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX4468EKA+T Details

  • Manufacturer Part Number:

    MAX4468EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP,

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    600 kHz

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • Harmonic Distortion:

    0.02%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX4468EKA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX4468EKA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to keep the input traces short and shielded, and to use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • To optimize the gain and bandwidth of the MAX4468EKA+T, you can adjust the gain-setting resistors (R1 and R2) and the bandwidth-setting capacitor (C1). You can also use the device's internal gain-setting pins (GAIN0 and GAIN1) to select from three gain settings. Additionally, you can use external components to filter out unwanted frequencies and noise.
  • The maximum input voltage that the MAX4468EKA+T can handle is ±2.5V, with a maximum differential input voltage of ±10mA. Exceeding these limits can cause damage to the device or affect its performance.
  • To ensure EM compatibility with the MAX4468EKA+T, you can use shielding, filtering, and grounding techniques. You can also use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, you can use a shielded enclosure and ensure that the device is placed away from sources of electromagnetic interference.
  • The recommended power supply decoupling for the MAX4468EKA+T involves using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed close to the device's power pins. This helps to reduce noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4468EKA+T Overview

Use the download button to access the MAX4468EKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
