MAX4766CETA+T - Analog Devices

Description: 0.075A to 1.5A, Programmable Current-Limit Switch

Download MAX4766CETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

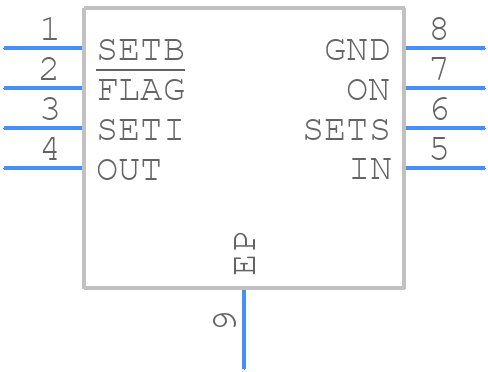

MAX4766CETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4766CETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833-1-
click to zoom
3D Models
MAX4766CETA+T - Analog Devices - 3D model - Small Outline No-lead - T833-1-
click to zoom

MAX4766CETA+T Details

  • Manufacturer Part Number:

    MAX4766CETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC8,.12,25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-11-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.135 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4766CETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4766CETA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input and output connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper powering and decoupling of the MAX4766CETA+T, use a high-quality power supply with low noise and ripple, and decouple the device with a 0.1uF ceramic capacitor between the VCC and GND pins. Additionally, use a 10uF electrolytic capacitor between the VCC and GND pins for further decoupling.
  • The MAX4766CETA+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • To troubleshoot common issues with the MAX4766CETA+T, start by checking the input voltage and current, and ensure that the device is properly powered and decoupled. Check the output voltage and current, and verify that the device is properly configured and connected. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for troubleshooting guides and tips.
  • Yes, the MAX4766CETA+T is suitable for use in high-reliability or safety-critical applications, such as aerospace, defense, and medical devices. The device is built with high-reliability materials and manufacturing processes, and is designed to meet or exceed industry standards for reliability and performance.
