MAX491EPD+ - Analog Devices

MAX491EPD+ Details

• Manufacturer Part Number:

  MAX491EPD+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

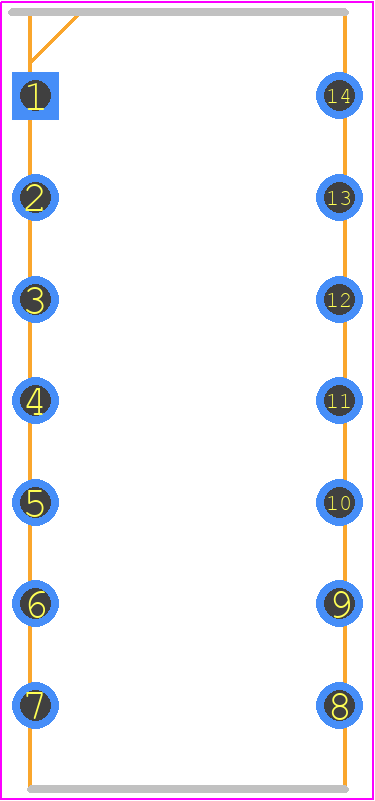

• Part Package Code:

  14-PDIP-300_MIL

• Package Description:

  PLASTIC, DIP-14

• Pin Count:

  14

• Manufacturer Package Code:

  14-PDIP-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-01-13

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER

• Differential Output:

  YES

• Driver Number of Bits:

  1

• High Level Input Current-Max:

  0.000002 A

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-422; EIA-485

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e3

• Length:

  19.05 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  1.5 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.004 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  150 ns

• Receiver Number of Bits:

  1

• Seated Height-Max:

  4.572 mm

• Supply Current-Max:

  0.5 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  60 ns

• Width:

  7.62 mm
