MAX563CWN+ - Analog Devices

Description: Maxim MAX563CWN+, Line Transceiver, EIA/TIA-562 2-TX 2-RX 2-TRX, 3 → 3.6 V, 18-Pin SOIC

Download MAX563CWN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

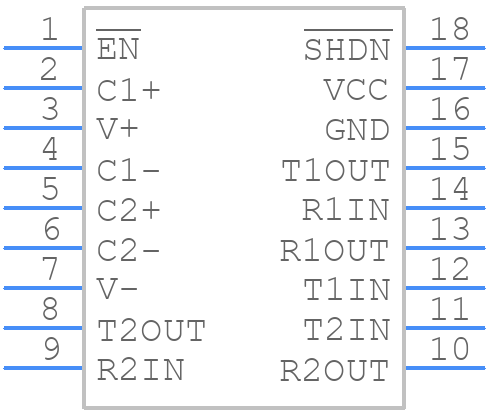

Symbol
MAX563CWN+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX563CWN+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 18 Wide SO
click to zoom
3D Models
MAX563CWN+ - Analog Devices - 3D model - Small Outline Packages - MAX 18 Wide SO
click to zoom

MAX563CWN+ Details

  • Manufacturer Part Number:

    MAX563CWN+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    18-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, SO-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    18-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1993-10-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; EIA-562

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    3.7 V

  • Output Low Current-Max:

    0.0032 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SO18(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    1000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    3500 ns

  • Width:

    7.5 mm
