MAX5925DEUB+ - Analog Devices

Description: 1V to 13.2V, n-Channel Hot-Swap Controllers Require No Sense Resistor

Download MAX5925DEUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

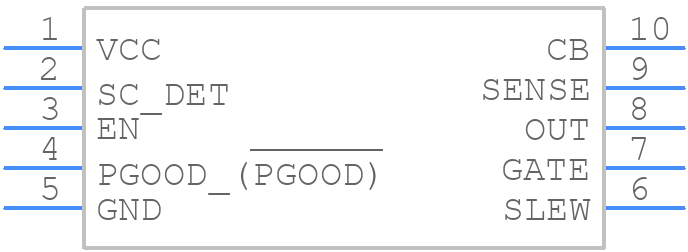

Symbol
MAX5925DEUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5925DEUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10CN+1_
click to zoom
3D Models
MAX5925DEUB+ - Analog Devices - 3D model - Small Outline Packages - U10CN+1_
click to zoom

MAX5925DEUB+ Details

  • Manufacturer Part Number:

    MAX5925DEUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MO-187CBA, MICRO MAX, PACKAGE-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-10-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    2.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5925DEUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5925DEUB+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and initialization, make sure to follow the power-up sequence recommended in the datasheet. Apply power to the device in the following order: VCC, then VDD, and finally the input voltage. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled. Finally, wait for the device to complete its internal power-up sequence before applying input signals.
  • The MAX5925DEUB+ can sink or source up to 100mA of current per output pin. However, it's essential to ensure that the total current drawn from the device does not exceed the maximum recommended current rating to avoid overheating and damage to the device.
  • To troubleshoot issues with the MAX5925DEUB+, start by verifying the input voltage and current, and ensure that the device is properly powered up and initialized. Check the output voltage and current using a multimeter or oscilloscope, and verify that the output is not overloaded. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices support.
  • The MAX5925DEUB+ is rated for operation up to 125°C. However, it's essential to ensure that the device is properly heat-sunk and that the maximum junction temperature is not exceeded. Additionally, the device's performance and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
