- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX5943AEEE+T
- Part Number MAX5943AEEE+T
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - E16+5
- Released Date Oct 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX5943AEEE+T Details
-
Manufacturer Part Number:
MAX5943AEEE+T
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-QSOP-150_MIL
-
Package Description:
SSOP, SSOP16,.25
-
Pin Count:
16
-
Manufacturer Package Code:
16-QSOP-150_MIL
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
MAX5943AEEE+T Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX5943AEEE+T involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
The output capacitor selection for the MAX5943AEEE+T depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple.
-
The MAX5943AEEE+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. As a general guideline, the ambient temperature should be kept below 85°C to ensure reliable operation.
-
Proper thermal management for the MAX5943AEEE+T involves providing a heat sink or a thermal pad to dissipate heat away from the device. The heat sink or thermal pad should be designed to keep the device's junction temperature below 125°C. Additionally, the PCB layout should be designed to minimize thermal resistance and ensure good airflow around the device.
-
The recommended input voltage range for the MAX5943AEEE+T is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V. However, operating the device at input voltages below 2.7V may affect its performance and efficiency.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX5943AEEE+T Overview

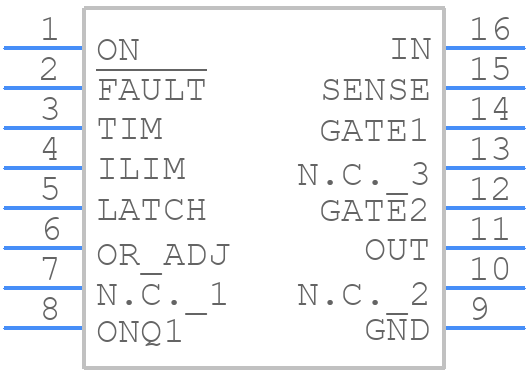

Use the download button to access the MAX5943AEEE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX59,
or try a keyword search, such as Power Management Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
