MAX5969AETB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5969AETB+T - POWER DEVICE INTERFACE CTRL, TDFN-10

Download MAX5969AETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

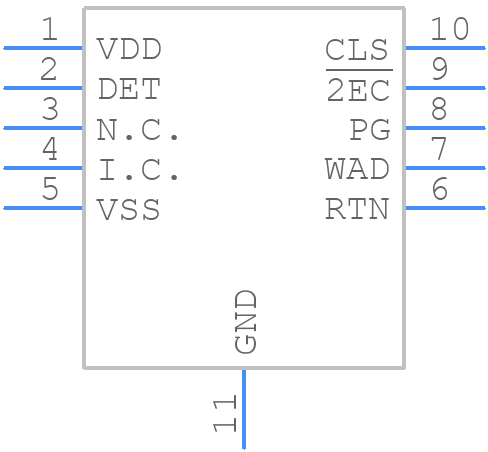

MAX5969AETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5969AETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX5969AETB+T
click to zoom
3D Models
MAX5969AETB+T - Analog Devices - 3D model - Small Outline No-lead - MAX5969AETB+T
click to zoom

MAX5969AETB+T Details

  • Manufacturer Part Number:

    MAX5969AETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-01-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5969AETB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5969AETB+T involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The MAX5969AETB+T requires a single 3.3V power supply. Ensure that the power supply is stable and within the recommended operating range. Also, make sure to follow the recommended power-up sequence, which involves applying the power supply to the device before applying any input signals.
  • The MAX5969AETB+T is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance.
  • To troubleshoot issues with the MAX5969AETB+T, start by checking the power supply voltage and ensuring it's within the recommended operating range. Next, verify that the input signals are within the recommended operating range and that the device is properly configured. Use an oscilloscope to monitor the output voltage and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX5969AETB+T is a high-reliability device, but it's essential to follow proper design and manufacturing practices to ensure the device operates reliably in a high-reliability or safety-critical application. Consult the datasheet and application notes for guidance on designing a reliable system, and consider using redundant or fail-safe designs to mitigate potential failures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5969AETB+T Overview

Use the download button to access the MAX5969AETB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX59, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
