MAX6072AAUB25+ - Analog Devices

Description: Series Voltage Reference IC Fixed 1.25V, 2.5V V ±0.05% 10 mA 10-uMAX/uSOP

Download MAX6072AAUB25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

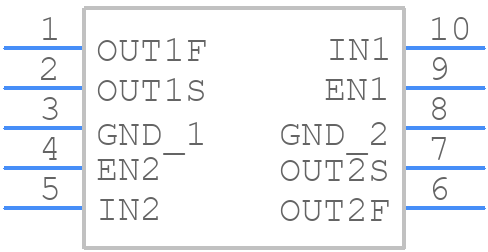

Symbol
MAX6072AAUB25+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6072AAUB25+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10M+5_2024
click to zoom
3D Models
MAX6072AAUB25+ - Analog Devices - 3D model - Small Outline Packages - U10M+5_2024
click to zoom

MAX6072AAUB25+ Details

  • Manufacturer Part Number:

    MAX6072AAUB25+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-04-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    2.50125 V

  • Output Voltage-Min:

    2.49875 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    6 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    3 mm

MAX6072AAUB25+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX6072AAUB25+ can be found in the MAX6072 evaluation kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet to ensure proper layout and thermal management.
  • To ensure accurate temperature measurement, it is essential to follow proper installation and calibration procedures. This includes ensuring good thermal contact between the device and the thermal pad, using a thermally conductive material, and calibrating the device according to the datasheet instructions. Additionally, the device should be operated within its specified temperature range and power supply voltage.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage clamp to ensure that the voltage on the VCC pin does not exceed the maximum rating.
  • The MAX6072AAUB25+ is a surface-mount device and can be sensitive to vibration. However, Analog Devices provides guidelines for vibration testing and recommends following proper mounting and soldering techniques to ensure reliable operation in high-vibration environments.
  • Analog Devices provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, engineers can contact Analog Devices' technical support team for further assistance. It is also recommended to review the device's operating conditions, PCB layout, and soldering quality to identify potential causes of issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6072AAUB25+ Overview

Use the download button to access the MAX6072AAUB25+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX60, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
