MAX6079ALA25+T - Analog Devices

Description: Voltage References Low-Noise, High-Precision Series Voltage References

Download MAX6079ALA25+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

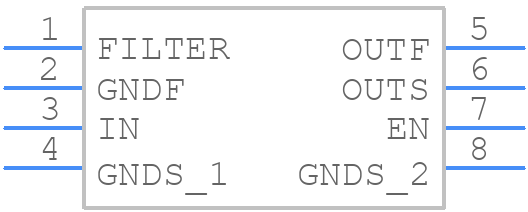

Symbol
MAX6079ALA25+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6079ALA25+T - Analog Devices PCB footprint - Other - Other - L8+1
click to zoom
3D Models
MAX6079ALA25+T - Analog Devices - 3D model - Other - L8+1
click to zoom

MAX6079ALA25+T Details

  • Manufacturer Part Number:

    MAX6079ALA25+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LCC-3X3X1.1

  • Package Description:

    LCC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LCC-3X3X1.1

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-CQCC-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.502 V

  • Output Voltage-Min:

    2.498 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    QCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    6 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

MAX6079ALA25+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6079ALA25+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the voltage regulator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure accuracy, it's essential to follow proper PCB layout guidelines, use a high-accuracy voltage reference, and calibrate the device during production. Additionally, the MAX6079ALA25+T has a built-in calibration feature that can be used to trim the voltage measurement to within ±0.5% of the nominal value.
  • The MAX6079ALA25+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • The MAX6079ALA25+T is designed for high-voltage applications and can withstand input voltages up to 76V. However, it's essential to follow proper PCB layout guidelines and use suitable protection components to prevent damage from voltage spikes and transients.
