MAX6126A25+T - Analog Devices

Description: Voltage References Ultra-High-Precision Ultra-Low-Noise

Download MAX6126A25+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

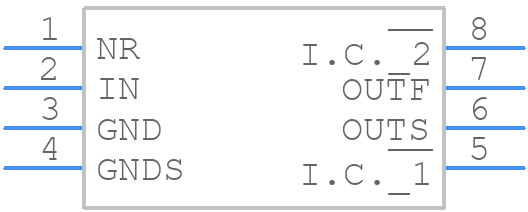

MAX6126A25+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6126A25+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX6126A25+T
click to zoom
3D Models
MAX6126A25+T - Analog Devices - 3D model - Small Outline Packages - MAX6126A25+T
click to zoom

MAX6126A25+T Details

  • Manufacturer Part Number:

    MAX6126A25+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    TSSOP, TSSOP8,.19

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.5015 V

  • Output Voltage-Min:

    2.4985 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

MAX6126A25+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6126A25+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor. It's also important to ensure that the device is operated within its recommended operating conditions, including input voltage, output current, and temperature range.
  • The MAX6126A25+T can deliver up to 500mA of output current. However, the maximum output current may be limited by the input voltage, output voltage, and the device's thermal performance. It's essential to check the device's thermal performance and ensure that it's operated within its recommended operating conditions to avoid overheating and damage.
  • The MAX6126A25+T is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to check the device's thermal performance and ensure that it's operated within its recommended operating conditions. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
  • To troubleshoot issues with the MAX6126A25+T, start by checking the device's input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions and that the PCB layout and component values meet the recommended guidelines. Use oscilloscopes and thermal imaging cameras to identify any issues. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' support team if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6126A25+T Overview

Use the download button to access the MAX6126A25+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX61, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
