MAX6129BEUK25+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6129BEUK25+T - Voltage Reference, Series - Fixed, 2.5V, 1% Ref, ? 100ppm/?C, SOT-23-5

Download MAX6129BEUK25+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

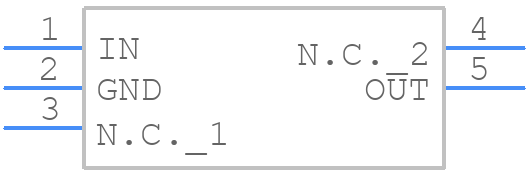

Symbol
MAX6129BEUK25+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6129BEUK25+T - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - U5+1
click to zoom
3D Models
MAX6129BEUK25+T - Analog Devices - 3D model - SOT23 (5-Pin) - U5+1
click to zoom

MAX6129BEUK25+T Details

  • Manufacturer Part Number:

    MAX6129BEUK25+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    5-SOT_23-N/A

  • Package Description:

    LSSOP, TSOP5/6,.11,37

  • Pin Count:

    5

  • Manufacturer Package Code:

    5-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.525 V

  • Output Voltage-Min:

    2.475 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    100 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    1%

  • Width:

    1.625 mm

MAX6129BEUK25+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6129BEUK25+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the power source to minimize noise and voltage drops.
  • To ensure stability, the MAX6129BEUK25+T requires a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm. Additionally, the device should be operated within its recommended input voltage range, and the input and output voltages should be properly decoupled. It's also important to follow the recommended PCB layout guidelines and to avoid long input and output traces.
  • The MAX6129BEUK25+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation and to prevent overheating.
  • Yes, the MAX6129BEUK25+T is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's essential to follow the recommended operating conditions, PCB layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the MAX6129BEUK25+T, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure that it follows the recommended guidelines. Verify that the decoupling capacitors are properly placed and meet the recommended specifications. Use an oscilloscope to check for noise, oscillations, or other anomalies on the input and output signals. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6129BEUK25+T Overview

Use the download button to access the MAX6129BEUK25+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX61, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
