MAX6133A25+ - Analog Devices

Description: Voltage References 3ppm/ C, Low-Power, Low-Dropout Voltage Reference

Download MAX6133A25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

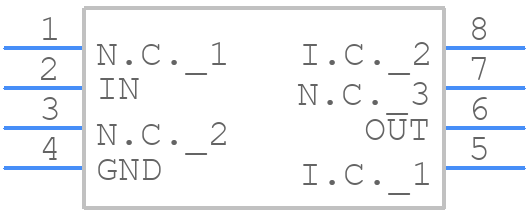

Symbol
MAX6133A25+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6133A25+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP_8
click to zoom
3D Models
MAX6133A25+ - Analog Devices - 3D model - Small Outline Packages - SSOP_8
click to zoom

MAX6133A25+ Details

  • Manufacturer Part Number:

    MAX6133A25+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.5015 V

  • Output Voltage-Min:

    2.4985 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    7 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.06%

  • Width:

    3 mm

MAX6133A25+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6133A25+ involves keeping the input and output pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and parasitic inductance. It's also recommended to place the device near the power source and to use a decoupling capacitor between the input pin and ground.
  • To ensure the MAX6133A25+ is stable and doesn't oscillate, make sure to follow the recommended layout and placement guidelines, use a sufficient decoupling capacitor, and ensure that the input and output capacitors are properly sized and placed. Additionally, avoid using long traces or wires that can introduce parasitic inductance, and consider adding a small resistor in series with the output capacitor to dampen any oscillations.
  • The maximum input voltage that the MAX6133A25+ can handle is 30V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 28V to ensure reliable operation and to prevent damage to the device.
  • The MAX6133A25+ is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as the temperature increases to prevent overheating and ensure reliable operation. Additionally, consider using a heat sink or thermal management system to keep the device within its recommended operating temperature range.
  • To troubleshoot issues with the MAX6133A25+, start by checking the input voltage and current, and ensure that the device is properly powered. Check the output voltage and current, and verify that the output is within the specified range. Use an oscilloscope to check for oscillations or noise on the output, and verify that the device is properly decoupled. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for further support.
