MAX6220ASA-5.0+T - Analog Devices

Description: Low 20ppm/°C Temperature Coefficient over -40°C to +125°C Range Very Low 1.5µVp-p Noise (0.1Hz to 10Hz) ±0.1% Initial Accuracy ±15mA Output Source and Sink Current 8V to 40V Input Voltage Range Optional Noise Reduction and Voltage Trim Excellent Transient Response Low 20ppm/1000hr Long-Term Stability Stable for All Capacitive Loads

Download MAX6220ASA-5.0+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

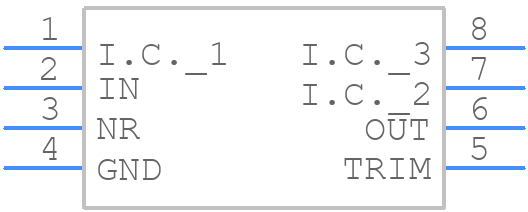

MAX6220ASA-5.0+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6220ASA-5.0+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (SO-8)_
click to zoom
3D Models
MAX6220ASA-5.0+T - Analog Devices - 3D model - Small Outline Packages - (SO-8)_
click to zoom

MAX6220ASA-5.0+T Details

  • Manufacturer Part Number:

    MAX6220ASA-5.0+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.005 V

  • Output Voltage-Min:

    4.995 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm
