MAX6241BCSA+ footprint, schematic symbol and 3D model by Analog Devices

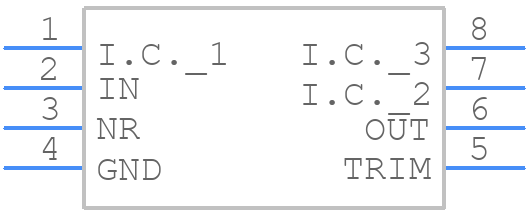

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX6241BCSA+
Part Number MAX6241BCSA+
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - -8 so
Released Date Jan 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX6241BCSA+ Details

Manufacturer Part Number:
MAX6241BCSA+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8-SOIC_N-150_MIL
Package Description:
0.150 INCH, MS-012A, SOIC-8
Pin Count:
8
Manufacturer Package Code:
8-SOIC_N-150_MIL
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
1996-09-23
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Output Voltage-Max:
4.1 V
Output Voltage-Min:
4.092 V
Output Voltage-Nom:
4.096 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SSOP8,.3
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
3.2 mA
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
8 V
Supply Voltage-Nom (Vsup):
10 V
Surface Mount:
YES
Technology:
BIPOLAR
Temp Coef of Voltage-Max:
5 ppm/°C
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trim/Adjustable Output:
YES
Voltage Tolerance-Max:
0.098%
Width:
3.9 mm
