MAX6250AESA+ - Analog Devices

Description: MAX6250AESA+, Precision Voltage Reference 5V ±0.02% 15mA 36 V max. 8-Pin SO

Download MAX6250AESA+ Model

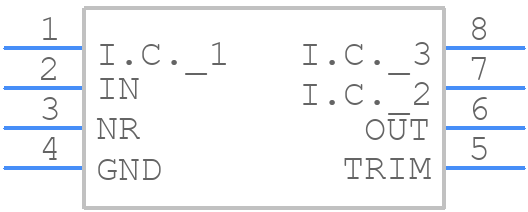

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX6250AESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+5
click to zoom
3D Models
MAX6250AESA+ - Analog Devices  - 3D model - Small Outline Packages - S8+5
click to zoom

MAX6250AESA+ Details

  • Manufacturer Part Number:

    MAX6250AESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012A, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.001 V

  • Output Voltage-Min:

    4.999 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    3 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.02%

  • Width:

    3.9 mm

MAX6250AESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6250AESA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure stability, the MAX6250AESA+ requires a minimum output capacitance of 10uF, and the output capacitor should be placed close to the device. Additionally, the device should be decoupled from the input voltage with a 1uF capacitor. The PCB layout should also be designed to minimize parasitic inductance and capacitance.
  • The maximum input voltage that can be applied to the MAX6250AESA+ is 6.5V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage regulator or a transient voltage suppressor to protect the device from voltage spikes and surges.
  • The output voltage of the MAX6250AESA+ can be calculated using the formula: VOUT = (VREF x (R1 + R2)) / R2, where VREF is the internal reference voltage (1.25V), R1 and R2 are the resistors used to set the output voltage. The output voltage can be adjusted by changing the values of R1 and R2.
  • The maximum output current that the MAX6250AESA+ can deliver is 500mA. However, the output current should be derated based on the ambient temperature and the input voltage. The device should be operated within the recommended operating conditions to ensure reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MAX6250AESA+ Overview

Use the download button to access the MAX6250AESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX62, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to MAX6250AESA+

Showing 0 results

MAX6250AESA+ Alternates

Showing results

Image Part Number Model
Part Image MAX6250AESA+T Maxim Integrated Products

Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, BIPolar, PDSO8

Part Image MAX6250ACSA+T Maxim Integrated Products

Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, BIPolar, PDSO8

Part Image MAX6250ACSA-T Maxim Integrated Products

Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, BIPolar, PDSO8

Part Image MAX6250AESA-T Maxim Integrated Products

Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, BIPolar, PDSO8

Part Image MAX6250ACSA Maxim Integrated Products

Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, BIPolar, PDSO8

For a full list of alternate parts for MAX6250AESA+, check out Findchips.com
