MAX6325CPA+ - Analog Devices

Description: MAX6325CPA+, Voltage Reference 2.5V 0.04% 15mA 40V max. 8-Pin PDIP N

Download MAX6325CPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

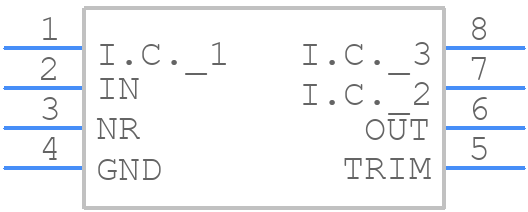

Symbol
MAX6325CPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6325CPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 leads pdip
click to zoom
3D Models
MAX6325CPA+ - Analog Devices - 3D model - Dual-In-Line Packages - 8 leads pdip
click to zoom

MAX6325CPA+ Details

  • Manufacturer Part Number:

    MAX6325CPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, MS-001AB, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-04-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.501 V

  • Output Voltage-Min:

    2.499 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    NO

  • Temp Coef of Voltage-Max:

    1 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    7.62 mm

MAX6325CPA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6325CPA+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the distance between the device and the battery. A good layout practice is to follow the recommended layout diagram provided in the datasheet and application notes.
  • To ensure stability, it's essential to follow the recommended component values and layout guidelines. Additionally, make sure the input and output capacitors are of high quality and have low ESR. Also, ensure that the device is properly decoupled from the power source and the output is properly filtered.
  • The maximum input voltage that the MAX6325CPA+ can handle is 12V. However, it's recommended to operate the device within the specified input voltage range of 2.5V to 11V for optimal performance and reliability.
  • The MAX6325CPA+ is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked and the ambient temperature is within the specified range.
  • To troubleshoot issues with the MAX6325CPA+, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly decoupled and filtered. Use an oscilloscope to check for any oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6325CPA+ Overview

Use the download button to access the MAX6325CPA+ schematic symbol, PCB footprint, and 3D model.
