MAX6495ATT/V+ - Analog Devices

Description: Supervisory Circuits 72V, Overvoltage-Pr

Download MAX6495ATT/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

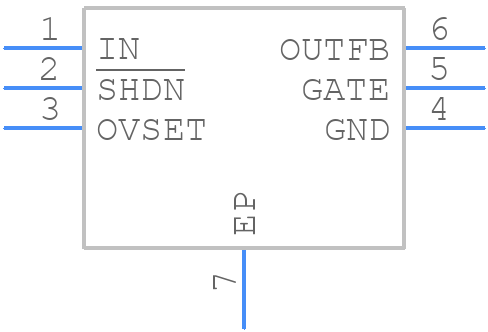

MAX6495ATT/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6495ATT/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 TDFN-EP
click to zoom
3D Models
MAX6495ATT/V+ - Analog Devices - 3D model - Small Outline No-lead - 6 TDFN-EP
click to zoom

MAX6495ATT/V+ Details

  • Manufacturer Part Number:

    MAX6495ATT/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-08-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC6,.13,38

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Supply Current-Max (Isup):

    0.15 mA

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX6495ATT/V+ Frequently Asked Questions (FAQs)

  • The MAX6495ATT/V+ requires careful layout and placement to ensure proper operation. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output pins away from each other, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, use a high-quality voltage reference, and minimize noise and ripple on the input and output lines. Additionally, consider using a Kelvin connection for the output voltage sense lines to reduce errors.
  • The MAX6495ATT/V+ can deliver up to 500mA of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. Be sure to check the datasheet for specific current limits and thermal considerations.
  • The MAX6495ATT/V+ has a thermal shutdown feature that protects the device from overheating. To ensure proper thermal management, provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from heat sources. Monitor the device temperature and adjust the layout and design as needed.
  • The MAX6495ATT/V+ is designed for industrial and commercial applications, but it can be used in high-reliability or high-temperature applications with proper design and qualification. Consult with Analog Devices Inc. for specific guidance and recommendations on using the device in these types of applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6495ATT/V+ Overview

Use the download button to access the MAX6495ATT/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX64, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
