MAX6499ATA/V+ - Analog Devices

Description: Supervisory Circuits 72V, Overvolt-Protect Switches/Limiter Controllers w an External MOSFET

Download MAX6499ATA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

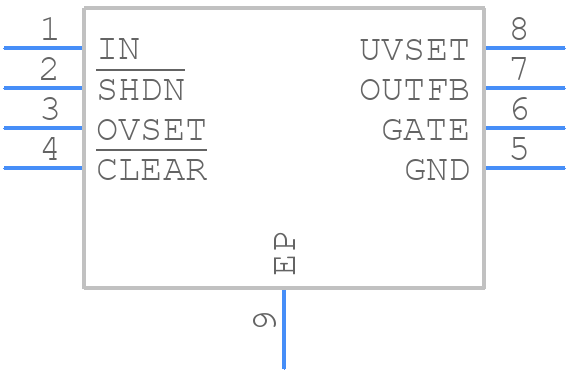

Symbol
MAX6499ATA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6499ATA/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2_2020
click to zoom
3D Models
MAX6499ATA/V+ - Analog Devices - 3D model - Small Outline No-lead - T833+2_2020
click to zoom

MAX6499ATA/V+ Details

  • Manufacturer Part Number:

    MAX6499ATA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-08-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OVSET THRESHOLD VOLTAGE ARE 1.24 AND 1.18V; UVSET THRESHOLD VOLTAGE ARE 1.24 AND 1.18V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    OVERVOLTAGE DETECTOR

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX6499ATA/V+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6499ATA/V+ involves keeping the input and output pins away from each other, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX6499ATA/V+ is stable and doesn't oscillate, it's essential to follow the recommended layout and placement guidelines, use a sufficient output capacitor, and ensure the input voltage is within the recommended range. Additionally, it's recommended to add a small capacitor (e.g., 10nF) between the output and ground pins to improve stability.
  • The maximum input voltage that can be applied to the MAX6499ATA/V+ is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the recommended range.
  • The MAX6499ATA/V+ is rated for operation up to 125°C. However, it's essential to ensure the device is properly derated for high-temperature operation, and the PCB is designed to handle the increased thermal stress. Additionally, it's recommended to use a heat sink or a thermal pad to improve heat dissipation.
  • To troubleshoot issues with the MAX6499ATA/V+, start by verifying the input voltage and current, and ensuring the device is properly connected and configured. Use an oscilloscope to check the output voltage and current, and look for signs of oscillation or instability. Check the PCB layout and placement for any potential issues, and ensure the device is properly decoupled and filtered.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6499ATA/V+ Overview

Use the download button to access the MAX6499ATA/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX64, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
