MAX6707SKA+T - Analog Devices

Description: Supervisory Circuits Low-Voltage, SOT23, uP Supervisors with Power-Fail In/Out, Manual Reset, and Watchdog Timer

Download MAX6707SKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

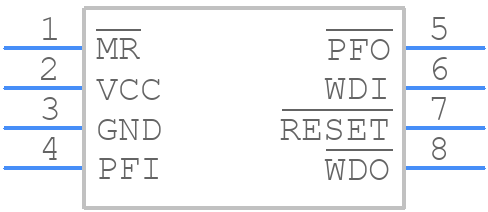

MAX6707SKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6707SKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+2
click to zoom
3D Models
MAX6707SKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+2
click to zoom

MAX6707SKA+T Details

  • Manufacturer Part Number:

    MAX6707SKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:Y;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6707SKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6707SKA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components for the MAX6707SKA+T depends on the specific application and requirements. However, as a general rule, it's recommended to use low-ESR capacitors and 1% tolerance resistors. The datasheet provides a recommended component list and a design procedure to help with the selection.
  • The MAX6707SKA+T has an operating temperature range of -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • Common issues with the MAX6707SKA+T can be troubleshooted by checking the PCB layout, ensuring proper power supply decoupling, and verifying the correctness of the external component values. Additionally, using an oscilloscope to measure the output voltage and current can help identify any issues. The datasheet and application notes provide more detailed troubleshooting guidelines.
  • Yes, the MAX6707SKA+T is compatible with lead-free soldering processes. The device is RoHS-compliant and can be soldered using lead-free soldering techniques. However, it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
