MAX6708SKA+T - Analog Devices

Description: Supervisors with Power- Fail In/Out, Manual Reset, and Watchdog Timer

Download MAX6708SKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

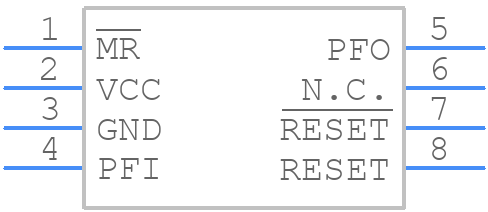

Symbol
MAX6708SKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6708SKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - soic 8
click to zoom
3D Models
MAX6708SKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - soic 8
click to zoom

MAX6708SKA+T Details

  • Manufacturer Part Number:

    MAX6708SKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:Y;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6708SKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6708SKA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components for the MAX6708SKA+T depends on the specific application and requirements. However, as a general rule, it's recommended to use low-ESR capacitors and 1% tolerance resistors. The datasheet provides guidelines for selecting the correct values for the external components, and it's also recommended to consult with Analog Devices' application notes and evaluation boards for more information.
  • The MAX6708SKA+T has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications. However, it's important to note that the device's performance may degrade at extreme temperatures, and it's recommended to consult the datasheet for more information on temperature-related specifications.
  • Troubleshooting common issues with the MAX6708SKA+T involves checking the PCB layout, ensuring that the input and output capacitors are properly connected, and verifying that the external components are correctly selected. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines, and to use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
  • Yes, the MAX6708SKA+T is compatible with lead-free soldering processes. The device is RoHS-compliant and can be soldered using lead-free soldering techniques. However, it's recommended to follow the recommended soldering profile and guidelines provided by Analog Devices to ensure reliable assembly and operation.
