MAX6711SEXS+ - Analog Devices

Description: 4-Pin SC70 Microprocessor Reset Circuits with Manual Reset Input

Download MAX6711SEXS+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

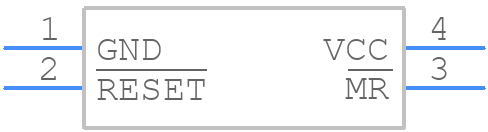

MAX6711SEXS+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6711SEXS+ - Analog Devices PCB footprint - Other - Other - X4 +1
click to zoom
3D Models
MAX6711SEXS+ - Analog Devices - 3D model - Other - X4 +1
click to zoom

MAX6711SEXS+ Details

  • Manufacturer Part Number:

    MAX6711SEXS+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    4-SC70-N/A

  • Pin Count:

    4

  • Manufacturer Package Code:

    4-SC70-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOT-143R

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30
