MAX6734KATGD3+T - Analog Devices

Description: Supervisory Circuits Single-/Dual-/Triple-Voltage P Supervisory Circuits w. Independent Watchdog Output

Download MAX6734KATGD3+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

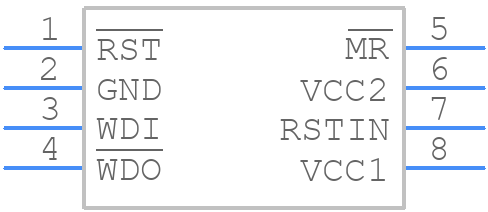

MAX6734KATGD3+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6734KATGD3+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8SN+1_
click to zoom
3D Models
MAX6734KATGD3+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8SN+1_
click to zoom

MAX6734KATGD3+T Details

  • Manufacturer Part Number:

    MAX6734KATGD3+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP,

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    MNL RST:Y;PW FL IO:N;PRG RST DLY:N;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.039 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    1 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.075,1.11V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6734KATGD3+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6734KATGD3+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, and the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 22uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The MAX6734KATGD3+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation at higher ambient temperatures to ensure reliable operation.
  • The MAX6734KATGD3+T requires a proper power-up sequence to ensure reliable operation. The input voltage should be ramped up slowly (typically 1ms to 10ms) to prevent overshoot and ensure the internal voltage regulators are properly initialized. Additionally, the EN pin should be pulled high after the input voltage has reached its nominal value.
  • The typical startup time for the MAX6734KATGD3+T is around 1ms to 2ms, but this can vary depending on the input voltage, output load, and specific application requirements. The startup time can be affected by the input voltage ramp rate, output capacitor value, and other factors.
