MAX6734KATGD3/V+T - Analog Devices

Description: μP Supervisory Circuits with Independent Watchdog Output

Download MAX6734KATGD3/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

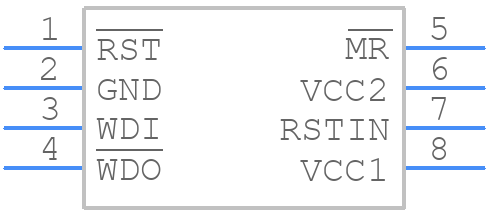

Symbol
MAX6734KATGD3/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6734KATGD3/V+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8SN+1
click to zoom
3D Models
MAX6734KATGD3/V+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8SN+1
click to zoom

MAX6734KATGD3/V+T Details

  • Manufacturer Part Number:

    MAX6734KATGD3/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP,

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6734KATGD3/V+T Frequently Asked Questions (FAQs)

  • It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
  • Choose capacitors with low equivalent series resistance (ESR) and high ripple current ratings. For input capacitors, use X5R or X7R ceramic capacitors with a minimum capacitance of 10uF. For output capacitors, use X5R or X7R ceramic capacitors with a minimum capacitance of 22uF. Consult the datasheet for more specific recommendations.
  • The MAX6734KATGD3/V+T is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet for more information on temperature-related specifications.
  • Follow the power-up sequence recommended in the datasheet, which typically involves applying the input voltage, followed by the enable signal. Ensure that the input voltage is within the specified range and that the enable signal is properly driven. Consult the datasheet for specific power-up and initialization requirements.
  • Common failure modes include overvoltage, undervoltage, and overheating. To mitigate these, ensure proper input and output voltage ranges, use overvoltage protection (OVP) and undervoltage lockout (UVLO) features, and implement thermal management techniques such as heat sinking and airflow. Consult the datasheet for more information on failure modes and mitigation strategies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6734KATGD3/V+T Overview

Use the download button to access the MAX6734KATGD3/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX67, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
