MAX6750KA32/V+T - Analog Devices

Description: μP Reset Circuits with Capacitor-Adjustable Reset/Watchdog Timeout Delay, 8-Pin SOT-23

Download MAX6750KA32/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

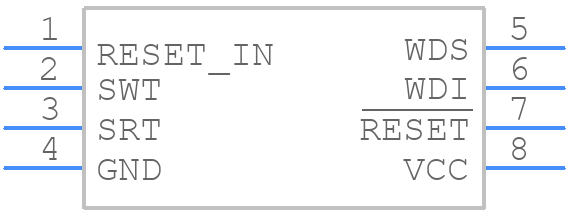

Symbol
MAX6750KA32/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6750KA32/V+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5A
click to zoom
3D Models
MAX6750KA32/V+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5A
click to zoom

MAX6750KA32/V+T Details

  • Manufacturer Part Number:

    MAX6750KA32/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6750KA32/V+T Frequently Asked Questions (FAQs)

  • The MAX6750KA32/V+T is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The MAX6750KA32/V+T requires a stable power supply and proper decoupling to operate correctly. Ensure that the power supply is well-regulated and filtered, and use decoupling capacitors with a value of 0.1uF to 1uF placed close to the device. Additionally, use a separate power plane for the analog and digital sections of the device.
  • The MAX6750KA32/V+T has an operating temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX6750KA32/V+T, start by checking the power supply and decoupling, ensuring that the device is properly powered and decoupled. Next, check the layout and placement, ensuring that the device is properly laid out and placed on the PCB. If the issue persists, use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
  • The MAX6750KA32/V+T is a high-reliability device, but it is not specifically designed for safety-critical applications. However, it can be used in high-reliability applications with proper design and testing. It is recommended to follow the guidelines provided in the datasheet and to perform thorough testing and validation to ensure the device meets the required reliability and performance standards.
