MAX6753KA46+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6753KA46+T - MPU Supervisor, 2 Monitors, 1V-5.5V supply, Active-Low, Open-Drain, 4.625V threshold, SOT-23-8

Download MAX6753KA46+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

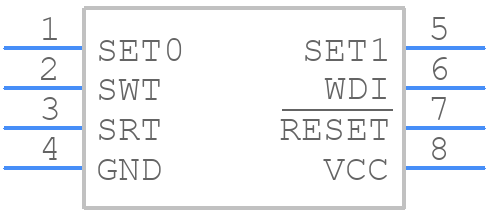

MAX6753KA46+T - Analog Devices - PCB symbol
