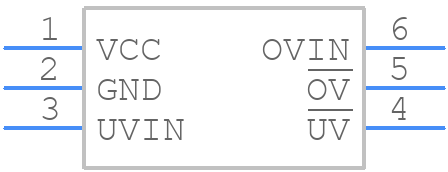

Symbol
MAX6764UT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6764UT+T - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - U6+1_
click to zoom
3D Models
MAX6764UT+T - Analog Devices - 3D model - SOT23 (6-Pin) - U6+1_
click to zoom

MAX6764UT+T Details

  • Manufacturer Part Number:

    MAX6764UT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-SOT_23-N/A

  • Package Description:

    LEAD FREE, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    WINDOW VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.023 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6764UT+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6764UT+T involves keeping the device close to the battery, using a star-connected layout for the input and output pins, and placing the decoupling capacitors as close as possible to the device. Additionally, it's recommended to use a solid ground plane and to avoid routing high-frequency signals under the device.
  • To optimize the performance of the MAX6764UT+T in a noisy environment, it's recommended to use a low-ESR capacitor for the input and output, add a noise filter at the input, and use a shielded cable for the output. Additionally, it's recommended to use a low-dropout linear regulator (LDO) with a high power supply rejection ratio (PSRR) to reduce the noise.
  • The maximum operating temperature range for the MAX6764UT+T is -40°C to +125°C. However, it's recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
  • Yes, the MAX6764UT+T can be used with a rechargeable battery. However, it's recommended to use a battery with a low self-discharge rate and to implement a battery protection circuit to prevent overcharge and over-discharge.
  • To troubleshoot issues with the MAX6764UT+T, it's recommended to check the input and output voltages, the current consumption, and the device's thermal performance. Additionally, it's recommended to use a oscilloscope to check for any noise or oscillations on the output, and to verify that the device is properly configured and connected.
